China Manufacturer Customized Commercial Air to Water DC Inverter Heaing Heat Pump Controller Control Board PCBA

Overview

Basic Info.

Model NO.	CC902-3
Condition	New
Measuring Range	-30°c~99°c
Sensor Type	Ntc(5K, 50K)
Control Mode	Heating,Cooling, Auto
Controlling Range	-30°c~99°c
Produuct Name	Inverter Heat Pump Controller
Application	Commercial Heating or Cooling Heat Pumpmachine
Transport Package	1.Protect Product with Polyfoam and Multi Layer PA
Specification	Mounting size: 210*134*34mm
Trademark	Elechico
Origin	Foshan, China
HS Code	8537101190
Production Capacity	80000

Product Description

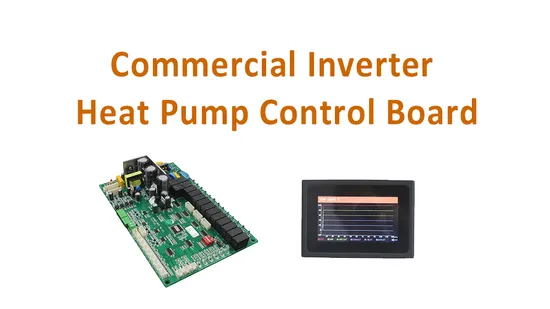

Product DescriptionCC902-3 INVERTER multi-function heating water heat pump Control BoardCC902 Series heat pump Inverter Controller is designed for controlling commercial heating or cooling heat pump with DC inverter compressor driver control board. It can also be control by WiFi Tuya App.
Our heat pump control board are suitable for home and commercial hot water heater machines, pool machines, air-conditioning cooling and heating, chiller,and so on. Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately.The biggest advantage of ELECHICO is our ability to customize products for our customers to meet their diverse requirements. Because we have experience in R&D and manufacture of heat pump controller for more than 19 years. Our chief engineer had 20 year thermostat developing experience. Therfore, we are mainly exporting OEM/ODM services.
Company profile

Founded in Foshan, China in 2003, Guangdong Chico Electronic Inc. is an advanced technology manufacturer and specializes in solution for intelligent control system in multiple industries.We operate two quality certified factories in both Foshan and Heyuan,China and have introduced a series of advanced equipment including automated AOI machine, SMT machine, automated assembly machine, FCT machine and so on.

* One-stop service from designing, manufacturing and testing.

* The competitive quality, the moderate price and the promptest delivery.

Product Parameters

Measuring range	-30°C~99°C
Controlling range	-30°C~99°C;
Temperature control Accuracy	+/-1 Celsius
Mounting size	210*134*34mm
Power supply	220 or 380 ±10%(VAC), 50/60Hz
Power consumption	<12W
Storage temperature	-25°C~50°C
Senor type	NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
Relay output capacity	10A/240VAC
	15A/250VAC
Product list	Main-board(1pcs)
	Color touch display(1pcs)
	Inverter driver board(1pcs)
	Filter board(1pcs)
	Connect wire (2pcs)
	Temp. sensor(11pcs)

Product Features

1	Color touch display, quick parameter setting, easy operation.
2	Intelligent defrost control mode.
3	Auto restart function Fan motor optional: AC/DC
4	EEV and EVI control function
5	Two work modes: Cooling mode, heating mode
6	Swimming pool, hot water or HVAC are optional.
7	The product has built-in Wi-Fi module, which can realize remote control of the device through mobile APP.
8	Thirteen way control output:	BTW water pump	DHW pump	4-way valve
		High fan motor	Low fan motor	EVI valve
		3-way valve	BTW electric heating	DHW electric heating
		Crankshaft electric heating	Solar water pump	Solar steering pump
		Plate heat exchanger electric heating		…
9	Eight way sensor input:	Inlet water temperature	Outlet water temperature	Ambient temp. sensor
		Coil temperature	Exhausted gas temperature	Suction temp. sensor
		Outlet water temperature	Outlet water temperature	…

Wiring Diagram

Packaging & Shipping
Company Profile
FAQ

1. Q: What is delivery time?
A: Within 15 working days for order less than 100pcs. Other Order Quantity can be delivered within 25-35 days.
2. Q: What is warranty of products?
A: All products are with 1 year guarantee.
3. Q: Does your company accept custom made in OEM/ODM mode?
A: Yes, we have a strong R&D team that can undertake OEM & ODM service.
4. Q: How do you control your product quality?
A: Firstly, our products are strictly in accordance with the ISO quality and CE system requirement. Secondly, each production procedure is designated by a particular engineer. Thirdly, we have a professional QC team.
5. Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
