Specialty Fiber Fusion Splicer Pmf Fiber Splicer Arc Fusion Splicing Machine for Photonics

Overview

Basic Info.

Model NO.	S-12PM
Weight(Kg)	6.2kg
Pm Fiber	Panda Fiber and Other Type Pmf
Alignment Mode	Core to Core Alignment
Applicable Fiber	Mmf(Itu-G651),SMF(Itu-G652), Nzds(Itu-G655),Ds(Itu
Transport Package	Packed in Carton
Trademark	SHINHO
Origin	China
HS Code	8515809090
Production Capacity	7000 Units/Year

Product Description

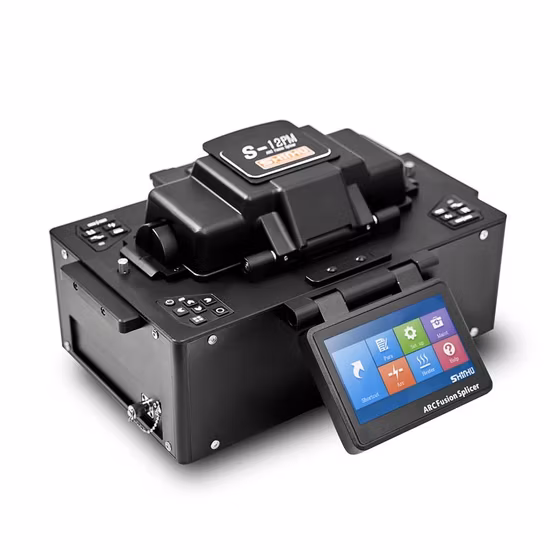

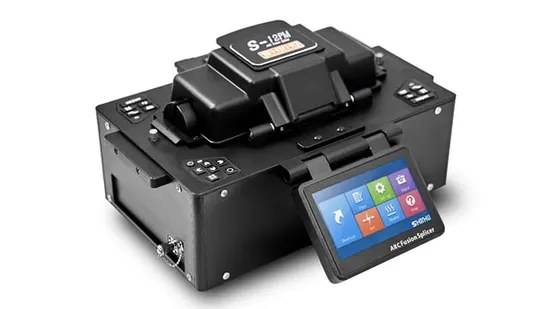

SHINHO S-12PM Designed for Polarization Maintaining Fiber

Features

* Suitable for SM/MM/PM fibers splicing* Typical SM fiber splicing time less than 15s* Core to core alignment, low splicing loss* End-view and Profile observation and alignment* Automatic ARC calibration and splicing* PM fiber 45 and 90 degree alignment* Applicable to variety fibers splicing, such as Panda ,bow-tie and elliptical fiber *Support 4000/100 groups fusion records/fusion images*Could identify fiber type automatically

S-12PM Fiber Fusion Splcier Specifications

Applicable fiber	SMF(ITU-G652), MMF(ITU-G651), NZDS(ITU-G655), DS(ITU-G653),EDF
PM fiber	Panda, Bow-tie and Elliptical fiber
Endface direct view	PAS and fiber end-face direct view available
Cladding diameter	80~125µm
Coating diameter	160~900µm
Average splice loss	SMF: 0.03dB, MMF: 0.05dB, NZDS:0.02dB, PMF 0.06dB
Extinction ratio	-32dB (PANDA)
Cleaved length	Standard 8~16mm
Alignment method	Profile and Endface alignment
Splicing program	40group
Heating mode	Manual, Automatic
Operation mode	Manual,Automatic
Typical splice time	SMF/MMF: 15seconds; PM Fiber:45seconds
Typical heating time	Typical 50s, could customize
PM Splicing mode	Support splicing at 45 degree and 90 degree
Fiber magnification	180X (X or Y view), 90X (X and Y view)
Viewing display	Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
Data storage	4000 groups data records
Tension test	1.96N
Interface	GUI menu interface, easy for operation
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Terminals	USB 2.0 port, for software upgrading, records exporting
Operating condition	-10ºC to 50ºC
Dimension/Weight	330mm*201mm*172mm (L*W*H) /6.2kg
