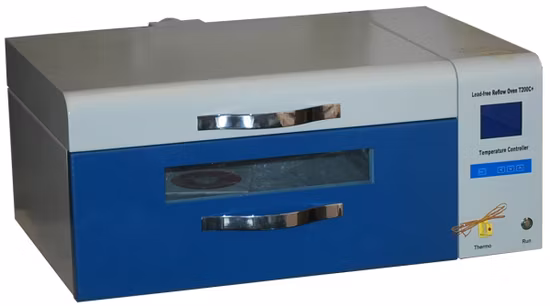

2023 SMT Mini Desktop Lead Free Welding Reflow Oven T200c+with Testing Temperature

2023 SMT Mini Desktop Lead Free Welding Reflow Oven T200c+with Testing Temperature

2023 SMT Mini Desktop lead free Welding reflow oven T200c+with Testing Temperature PC interface software control and vis
Basic Info.
Model NO. T200C+
Temperature Range Room-Temperature -360 O C
Heating Way Infrared Ray + Hot Air Convection
Dimension 70 * 46*31cm
Weight 39 Kg
Transport Package Wooden Case
Specification CE, ISO9000, ISO14000
Trademark Torch
Origin Beijing, China
HS Code 8514200009
Production Capacity 20 Set/Month
Product Description
2023 SMT Mini Desktop lead free Welding reflow oven T200c+with Testing Temperature

PC interface software control and visional operation

Real-time temperature testing function fills the blank of SMT industry overall world for adjusting the temperature at the real time.


Patented heater installation For heating evenly
Patented forced air cycling and ventilating technology® For extremely uniform temperature profiling across the board.
Patented oven door actuating device For no vibration after PCB welding.
Patented auto-open door technology For higher efficiency on production and the door matched with seal device for keeping temperature.
Active Ventilation function for exhaust gas emission.
Exhaust purifying function for environment-friendly.

Application:


T200C, T200C+ for SMD component 0201, QFP, PLCC ect
T200N, T200N+ for SMD component 0201, QFP, PLCC and specially for some more high precision component like more foot of QFP, high precision BGA component.
T200C and T200N for small mass production in factories.
T200C+, T200N+, + series it is suitable for school, R&D center of enterprise, of course
Which depends on customer's board situation and operation requirement.
TORCH brand desktop reflow oven has got purchse order from TOP 500 enterprises: GE, CISCO, 3M, TI, NVIDIA, Nortel Network ect last year, especially GE and CISCO, totally purchased for more than 12 sets.

2023 SMT Mini Desktop Lead Free Welding Reflow Oven T200c+with Testing Temperature


Specification:


Temperature control segment:
40 segment
The segment can be set in computer according to the actual requirement.
Temperature-zone numbers:Single-zone and multi-segment
Temperature control systemPC control system, SSR non-contact output
Temperature accuracy+/- 2 ºC
Warm-up time3min
Temperature rangeRoom-temperature -360 ºC
Heating supplyInfrared ray + Hot air convection
Effective working table area360mm * 230mm (more than A4)
Welding time3min +/-1min
Temperature curveIt can be set, adjusted and tested according to the actual requirement.
Cooling systemTransverse flow equal cooling
Rated voltageAC single-phase, 220V; 50Hz
Rated power3.8KW Mean power: 1.6kw
Weight39 kg
DimensionLength*width*height 700 * 460 *310mm
